The Ultimate Guide to Polyethylene (PE): Types, Differences, and Applications
Polyethylene (PE) is the most widely produced plastic in the world. From the shopping bags and cling film we use daily to automotive fuel tanks and industrial pipes, the PE family is behind a vast range of products. However, "PE" is not a single material but a family of polymers with different properties. Understanding its classification, differences, and applications is key to selecting the right material.
1. The Main Types of Polyethylene
Polyethylene is primarily classified by its density and molecular chain structure, which are the core factors determining its properties. The main types are:
- Low-Density Polyethylene (LDPE)
- Linear Low-Density Polyethylene (LLDPE)
- High-Density Polyethylene (HDPE)
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
While other types like Medium-Density Polyethylene (MDPE) exist, the four above are the most common and critical.
2. How to Distinguish Between Different Types of PE
Different types of PE have distinct physical properties due to their unique structures. These differences are the key to telling them apart.
Low-Density Polyethylene (LDPE)
How to Identify:
It feels soft, smooth, and waxy. It is transparent or translucent. Take a piece of LDPE film and stretch it gently; you will feel it is highly flexible and deforms easily.
Key Properties:
Low Rigidity: Not suitable for applications requiring stiffness.
Poor Heat Resistance: Typical continuous use temperature is below 80°C; it deforms easily above this.
Chemical Stability: Good resistance to acids, alkalis, and salts, but poor solvent resistance.
Linear Low-Density Polyethylene (LLDPE)
How to Identify:
It looks similar to LDPE but feels tougher and more elastic. When stretched, it feels more "ductile" and requires more force to break than LDPE.
Key Properties:
Excellent Puncture and Tear Resistance: This is the core difference from LDPE.
Higher Tensile Strength: It can withstand greater pulling force than LDPE.
High-Density Polyethylene (HDPE)
How to Identify:
It feels stiff and hard and appears opaque or semi-opaque with a waxy feel. It is difficult to bend by hand and produces a rustling sound when crumpled.
Key Properties:
High Rigidity and Hardness: Can be used as a structural component.
Higher Heat Resistance: Maximum service temperature can reach 120°C, making it suitable for hot water pipes.
Better Chemical Stability: Can hold a wide range of chemicals.
Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
How to Identify:
The surface is extremely smooth and self-lubricating. It feels very tough and is highly resistant to scratching with a blade.
Key Properties:
Extremely High Wear Resistance: Up to 7 times that of carbon steel. This is its most outstanding feature.
Extremely High Impact Strength: Maintains excellent impact resistance even at low temperatures.
Very Low Coefficient of Friction: It also has non-stick properties.
Difficult to Process: Due to its extremely high molecular weight, it has very poor melt flow and requires special compression molding or sintering techniques.
3. Where Are Different Types of PE Used?
Based on their unique properties, different PE dominate various application fields.
LDPE Applications:
Film Packaging: Food cling wrap, supermarket plastic bags, lightweight carrier bags.
Coatings: Interior lining of milk cartons and paper cups for moisture resistance.
Flexible Containers: Squeeze bottles (e.g., for dish soap, shampoos).
Wire & Cable: Insulation and sheathing.
LLDPE Applications:
High-Performance Films: Stretch wrap (for logistics), agricultural film, garbage bags, heavy-duty shipping sacks. Its superior toughness allows for thinner, stronger films.
Pipes: Hoses for irrigation and chemical transfer.
Injection Molded Products: Lids, buckets, and toys where better impact resistance is needed.
HDPE Applications:
Containers & Housewares: Milk bottles, detergent bottles, shampoo bottles, water buckets, chairs, and tables.
Pipe Systems: Water supply pipes, gas pipes, industrial chemical pipes.
Blow-Molded Products: Large storage tanks, buoys.
Fibers: Ropes, fishing nets.
UHMWPE Applications:

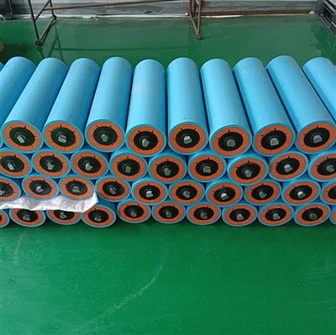

Industrial Components: Gears, star wheels in textile machinery, wear plates in paper making.
Bulk Material Handling: Liners for hoppers, chutes, and dump truck beds handling coal, ore, and grains due to its wear resistance and non-stick properties.
Medical Field: Artificial joints, orthopedic implants due to its biocompatibility and wear resistance.
Security & Defense: Ballistic body armor, cut-resistant gloves (when used in fiber form), leveraging its extremely high energy absorption capacity.
summary
The Polyethylene family, by adjusting its molecular chain structure, covers a vast spectrum from extremely soft to very rigid, and from common packaging to high-end engineering applications. To make the right choice
- For transparent and flexible packaging, choose LDPE.
- For tough and tear-resistant films and bags, choose LLDPE.
- For rigid, load-bearing containers and pipes, choose HDPE.
- For extreme conditions involving severe wear and high impact, choose UHMWPE.
Understanding these classifications and differences is not only useful for daily life but also essential knowledge for engineering design and material selection.
